Flagship Medical Spa Skin Diagnostic Systems
Explore our top-tier CE, RoHS, and ISO-certified multispectral 3D facial imaging systems engineered for high-precision aesthetic consultations.

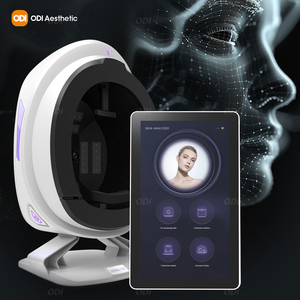

3D AI Facial Skin Analyzer Detection Skin Problem Analysis Diagnosis 8 Spectrum Machine
- 8 Optical Spectrum Illumination
- AI Deep Problem Diagnosis
- Designed for Medical Spas & Clinics

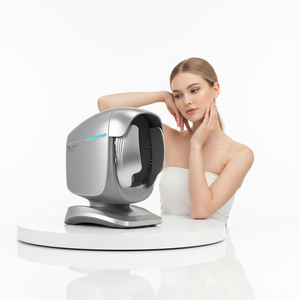

CE RoHS ISO Certified AI Skin Analysis Machine Professional 3D Facial Diagnostic System
- ISO13485 & CE Medical Standard
- Sub-dermal Chromophore Mapping
- High-Speed Optical Sensor Array

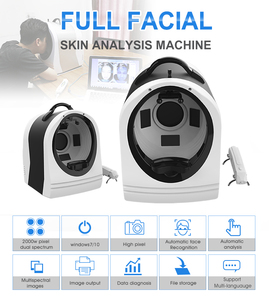

3D Spectral Skin Imaging System with 13 Index Data and Before After Comparison
- 13 Quantifiable Biomarker Metrics
- Precision Before/After Overlay
- Ideal for Hospitals & MedSpas

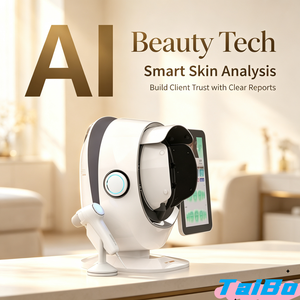

Intelligent AI Face Skin Analysis Machine 3D Scanner Diagnostic System with Product Rec
- Automated Skincare Product Pairing
- 3D Volumetric Mesh Scanner
- Cloud Patient Management

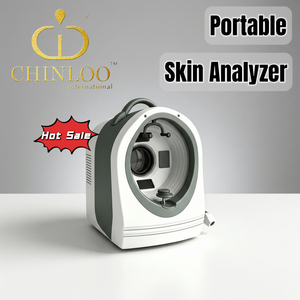

Multifunctional 3D Spectral Skin Imaging System for Beauty Clinic and Hospital
- Full Dermis & Epidermis Scanning
- Customizable White-Label Software
- Multi-User Cloud Syncing

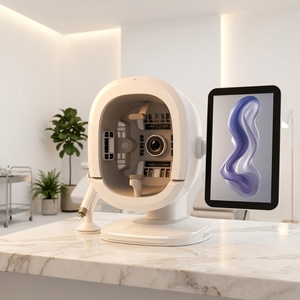

Professional AI Skin Analyzer with 12-Spectrum Light System 40MP HD Camera
- 40 Megapixel Ultra-HD Sensor
- 12-Spectrum Illumination Matrix
- Porphyrin & Erythema Precision

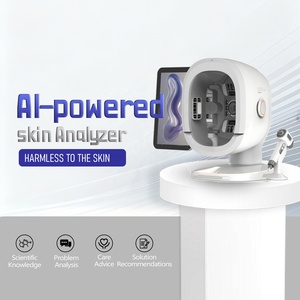

2026 Top-Sales AI Professional Facial Detection Instrument 3D Skin Analyzer System
- Next-Gen AI Deep Neural Network
- Ergonomic Clinical Hood Design
- High-Speed 15-Second Full Scan
Portable 2025 Smart 3D Skin Analyzer Machine OEM Logo AI Facial Scanner Device
- Compact Lightweight Form Factor
- OEM Logo & Casing Customization
- Wireless Tablet Integration
The Paradigm Shift in Medical Spa Skin Diagnostics
In modern aesthetic medicine and cosmetic dermatology, subjective visual inspection is no longer sufficient to justify complex therapeutic interventions. Patients demand empirical, data-backed diagnostic proof before committing to high-ticket procedures such as fractional CO2 laser resurfacing, intense pulsed light (IPL) therapy, microneedling RF, or targeted chemical peels.
As China's leading medical-grade optoelectronic original equipment manufacturer (OEM), our facility bridges the gap between high-end hardware optical physics and artificial intelligence algorithm development. By capturing sub-surface chromophores, vascular irregularities, micro-inflammation, and porphyrin concentrations, our systems deliver unprecedented diagnostic objectivity.
Multi-Spectral Imaging Technology Explained
Our skin diagnostic systems leverage distinct wavelengths light interaction physics to reveal physiological conditions across the stratum corneum, epidermis, and deep dermis layer.
RGB Standard Daylight
Simulates natural daylight illumination (Color Rendering Index CRI > 98%) to establish baseline skin color, surface morphology, macropores, coarse wrinkles, and visible epidermal blemishes without optical distortion.
Cross-Polarized Light
Eliminates surface specular glare and light reflection, allowing optical penetration into the upper papillary dermis. Essential for mapping deep-seated hyperpigmentation, dermal melasma, vascular erythema, and telangiectasia.
UV 365nm Fluorescence
Excites natural fluorophores within the skin. Sub-surface porphyrins produced by Cutibacterium acnes glow reddish-orange under 365nm UV, while micro-comedones and sebum plugs fluoresce yellow-white for precise acne management.
Parallel-Polarized Light
Enhances surface specular reflections, amplifying fine micro-relief patterns, pore architecture, fine lines, moisture loss indicators, and subtle epidermal texture irregularities.
Wood's Light Spectrum
Provides diagnostic clinical discrimination between epidermal pigmentation (which accentuates under Wood's light) and dermal pigmentation (which remains unchanged), guiding laser targeted depth settings.
Red/Brown Spot Mapping
Proprietary color-space mathematical conversion separates hemoglobin absorption from melanin absorption, creating discrete heatmaps for vascular lesion therapy and pigment removal protocols.
Diagnostic Spectrum vs. Clinical Pathology Mapping
Comprehensive comparison of optical modalities utilized in our China-manufactured medical spa skin imaging platforms.
| Optical Modality | Wavelength / Light Source | Target Anatomical Layer | Detectable Skin Pathology | Clinical Utility |
|---|---|---|---|---|
| RGB Standard | White LED (400 - 700nm) | Stratum Corneum / Surface | Coarse Wrinkles, Pores, Freckles | Baseline Benchmark |
| Cross-Polarized | Linear Filtered LED | Epidermis to Papillary Dermis | Melasma, Sun Damage, Telangiectasia | Pigment & Vascular |
| UV Light | Narrowband UV 365nm | Follicular Infundibulum | C. acnes Porphyrins, Sebum, UV Spots | Acne & Photodamage |
| Parallel-Polarized | Direct Reflection Filter | Skin Surface Texture | Fine Lines, Desquamation, Moisture Loss | Barrier Integrity |
| Wood's Illumination | Filtered 320 - 400nm | Dermo-Epidermal Junction | Depigmentation, Tinea Versicolor | Differential Diagnosis |
| Red Area Extraction | Hemoglobin Separated Alg. | Sub-dermal Micro-vessels | Rosacea, Sensitive Flushing, Acne Scarring | Vascular Therapy |
Future Procurement Trends for Medical Spa Imaging Devices (2025–2030)
As global competition among aesthetic practices heightens, procurement directors must evaluate key technological trajectories when choosing factory OEM partners.
1. Deep Learning AI & Quantitative Scoring
Future procurement is shifting from raw imaging to automated algorithmic scoring. Artificial intelligence trained on over 10 million clinically annotated Asian, Caucasian, African, and Hispanic skin datasets can immediately score 13+ skin indicators (aging index, pigment density, hydration balance, wrinkle depth) relative to age and skin-type peer groups.
2. Automated Skincare & Device Matching
Modern medspas demand system software that automatically pairs skin diagnostic metrics directly with clinic treatment inventory. Our customizable software engines allow clinic managers to upload their specific laser menu, injectable treatments, and medical-grade skincare products, generating automated, non-biased patient prescription reports.
3. True 3D Volumetric Mesh & Aging Aging Simulation
2D imaging is rapidly being replaced by 3D volumetric facial reconstruction. By capturing multi-angle facial contours, medical spas can accurately simulate 3-5 year age progression and regression, visually demonstrating the projected aesthetic outcomes of dermal fillers, HIFU lifting, and thread lifts before procedure initiation.
4. HIPAA-Compliant Cloud & Multi-Clinic Syncing
Multi-location medspa chains require centralized data architecture. Our 2025/2026 systems integrate encrypted cloud storage, enabling seamless patient profile access across multiple clinic branches while ensuring compliance with global data protection regulations (GDPR / HIPAA).
5. Modular Hardware & Extended Body Coverage
Moving beyond facial scanning, next-generation procurement prioritizes modular expansion accessories. Optional attachments for hands, neck, and décolleté allow clinics to extend consultation services to sun-damaged body areas, maximizing clinic revenue per patient.
6. White-Label OEM Branding & SDK Access
Leading aesthetic franchises are moving away from locked, proprietary software ecosystems. Global buyers increasingly favor factory suppliers who provide complete white-label customization (custom chassis colorways, software logo integration, API/SDK access) to reinforce their own brand equity.
Enterprise Advantages & Global OEM Capabilities
Benchmarked against international clinical standards (Sylton Observ, VISIA), our China manufacturing facility provides superior cost-performance ratios without optical compromise.
✓ Medical-Grade ISO13485 Manufacturing
Our state-of-the-art facility operates under strict ISO 13485 Quality Management Systems. Every optical sensor, LED module, and optical glass element undergoes rigorous spectral calibration prior to assembly.
✓ 40MP Sony CMOS Optical Hardware
Utilizing high-end Sony STARVIS industrial-grade sensors, our cameras capture sub-micron cutaneous details, delivering crystal-clear optical output that builds unshakeable patient trust.
✓ Complete OEM/ODM & Software Localization
From custom chassis mold manufacturing to multi-language software translation (English, Spanish, German, French, Arabic, Portuguese), we provide turn-key customization for global distributors.
✓ Agile R&D & Rapid Global Support
With over 50 dedicated optical engineers and software developers, we launch firmware updates every quarter and offer 24/7 remote technical assistance for international medical centers.
Frequently Asked Questions (FAQ) for B2B Buyers
Answers to common operational, technical, and logistics queries from medical spa owners and equipment distributors.
Q1: What is the primary operational advantage of implementing a 3D skin imaging system in a medical spa?
Implementing a professional 3D skin imaging system transforms subjective consultations into objective, evidence-based diagnostic sessions. Clinicians report up to a 40% increase in treatment plan acceptance rates because patients can visually comprehend sub-surface damage (such as latent melasma, UV damage, micro-inflammation, and structural collagen loss) that is invisible under standard light. Furthermore, standardized before-and-after tracking boosts client retention and proves treatment efficacy.
Q2: How do China-manufactured skin imaging systems compare with legacy Western brands?
China optical manufacturers have achieved rapid technological parity by utilizing identical high-tier hardware components—such as Sony 40MP industrial CMOS sensors and German optical lenses—while leveraging China's integrated optoelectronic supply chain. This results in devices that offer equivalent or superior multi-spectral diagnostic capabilities at 30% to 50% lower capital expenditure, backed by flexible OEM software white-labeling that legacy Western manufacturers rarely offer.
Q3: Can the diagnostic software be customized with our medspa's logo and product lineup?
Yes. We offer comprehensive OEM/ODM software customization. Distributors and clinic chains can customize the graphical user interface (GUI) with their brand logo, corporate color schemes, and custom diagnostic report templates. Crucially, clinic managers can input their exact skincare product lines and energy-based device menus, enabling the AI engine to generate automated treatment recommendations tailored to their practice.
Q4: Are these diagnostic devices compliant with international safety and quality standards?
All of our skin diagnostic machines are manufactured under ISO 13485 certified quality management environments and hold full CE, RoHS, and FCC certifications. Optical emissions comply with international photobiological safety standards (IEC 62471), ensuring complete safety for eye and skin exposure during repeat UV spectral flashes.
Q5: What is the typical Minimum Order Quantity (MOQ) and lead time for wholesale factory procurement?
For standard unbranded or factory-branded units, the MOQ is 1 unit, with dispatch within 3-5 working days. For custom OEM white-label requests (chassis silk-screening, custom packaging, software rebranding), the typical MOQ is 5 to 10 units, with a production lead time of 10 to 14 business days. Air express door-to-door freight is available worldwide.
Q6: How is technical support, warranty, and software calibration handled internationally?
We provide a 2-year comprehensive hardware warranty on all skin diagnostic units. In the event of a component failure, replacement modular parts are shipped via express air freight alongside step-by-step video guidance. Software updates, cloud algorithm enhancements, and spectral recalibrations are performed remotely over an encrypted connection at no extra charge.
